Vertical Slide 5" x 4" w. T-slots - Tilt & Swivel
Vertical Slide 5" x 4" w. T-slots - Tilt & Swivel
Vertical Slide 5" x 4" w. T-slots - Tilt & Swivel
Vertical Slide 5" x 4" w. T-slots - Tilt & Swivel
Vertical Slide 5" x 4" w. T-slots - Tilt & Swivel
Vertical Slide 5" x 4" w. T-slots - Tilt & Swivel
Vertical Slide 5" x 4" w. T-slots - Tilt & Swivel
Vertical Slide 5" x 4" w. T-slots - Tilt & Swivel

Vertical Slide 5" x 4" w. T-slots - Tilt & Swivel

SKU: 081-081-00150
Price
$218.90
In stock and ready for shipping

Product Informations:

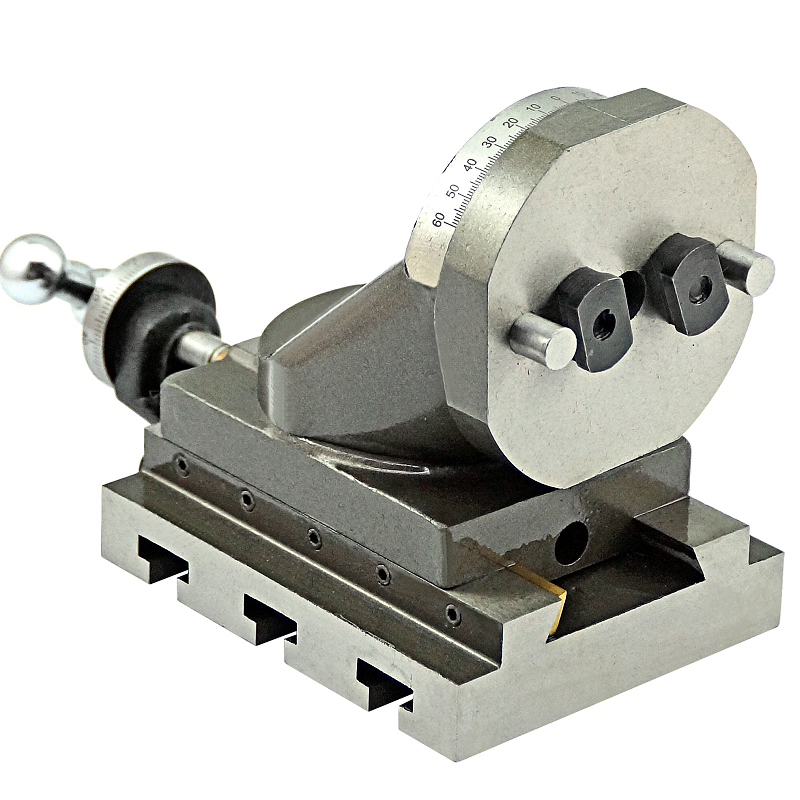

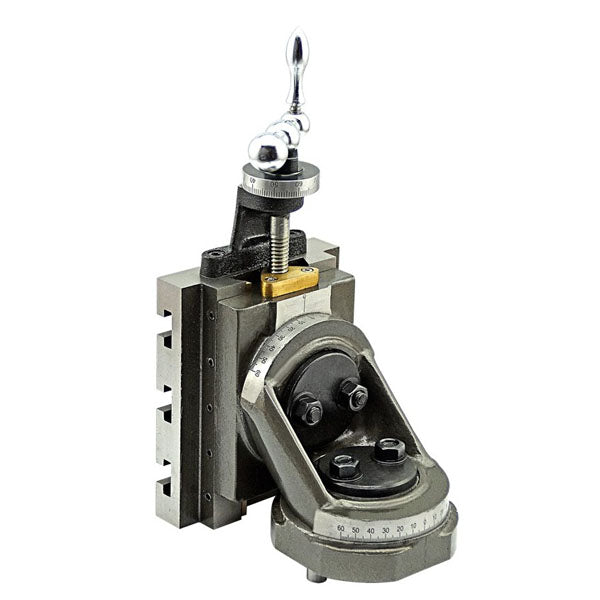

Tilt & swivel vertical slide / milling attachment - suitable for Myford.

Specifications:
Table Size: 5" x 4" (127x102mm)
Table Travel: 100mm
Tilt & Swivel Angles: 60° - 0° - 60° with clearly marked protractors.
Feed Screw Pitch:2mm
Tee Slots: 3x 10mm wide
Micrometer Dial Divisions: 100 (0.02mm)
Bottom Fixing: Flat base with 2x 3/8" location dowels and 2x M8 studs fitted with 9.5mm wide tee-nuts.
