Model 100 / 111 Tool Holders

Specifications for the Standard Tool Holder:

This tool holder is designed to hold square tools up to 12mm.
A: 38mm
B: 14mm
C: 11.5mm
D: 25.4m

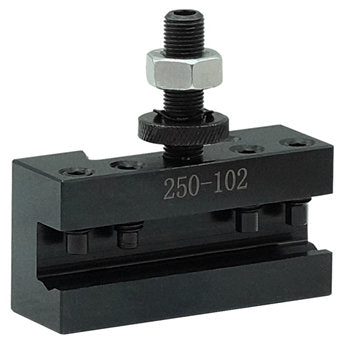

Specifications for the V-Groove Tool Holder:

This tool holder is designed to hold square tools up to 12mm and round tools diameter up to 11.5mm.
A: 38mm
B: 14mm
C: 11.5mm
D: 25.4mm

Specifications for the Boring Tool Holder:

This boring tool holder is designed to hold ø16mm round tools using the split sleeve (included) and ø19mm without the sleeve.
A: 38mm
B: 19mm
C: ø16mm with sleeve, ø19mm without sleeve

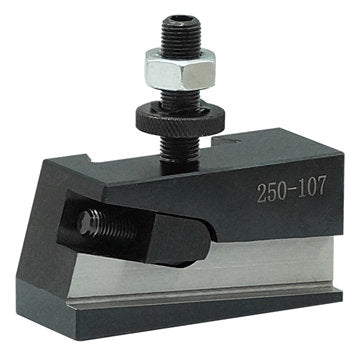

Specifications for the Parting Tool Holder (Angled):

This parting tool holder will hold parting blade up to 3/16"x1/2".
A: 1.1/2"
B: 1/2"
C: 3/16"mm

Suitable Blades:
HSS Parting-off Blade 3/32"x1/2"x4.1/2"
Tapered M42 HSS-Co8 Parting-off Blade 2x13x110mm

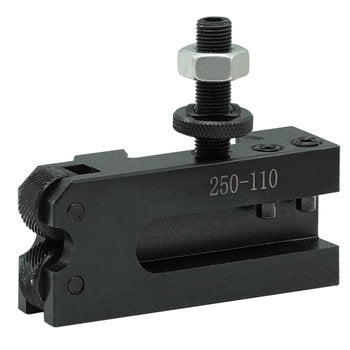

Specifications for the Knurling Tool Holder:

A: 40mm
B: 15mm
C: 11mm
D: 11.2mm
E: 19mm
F: 65mm
