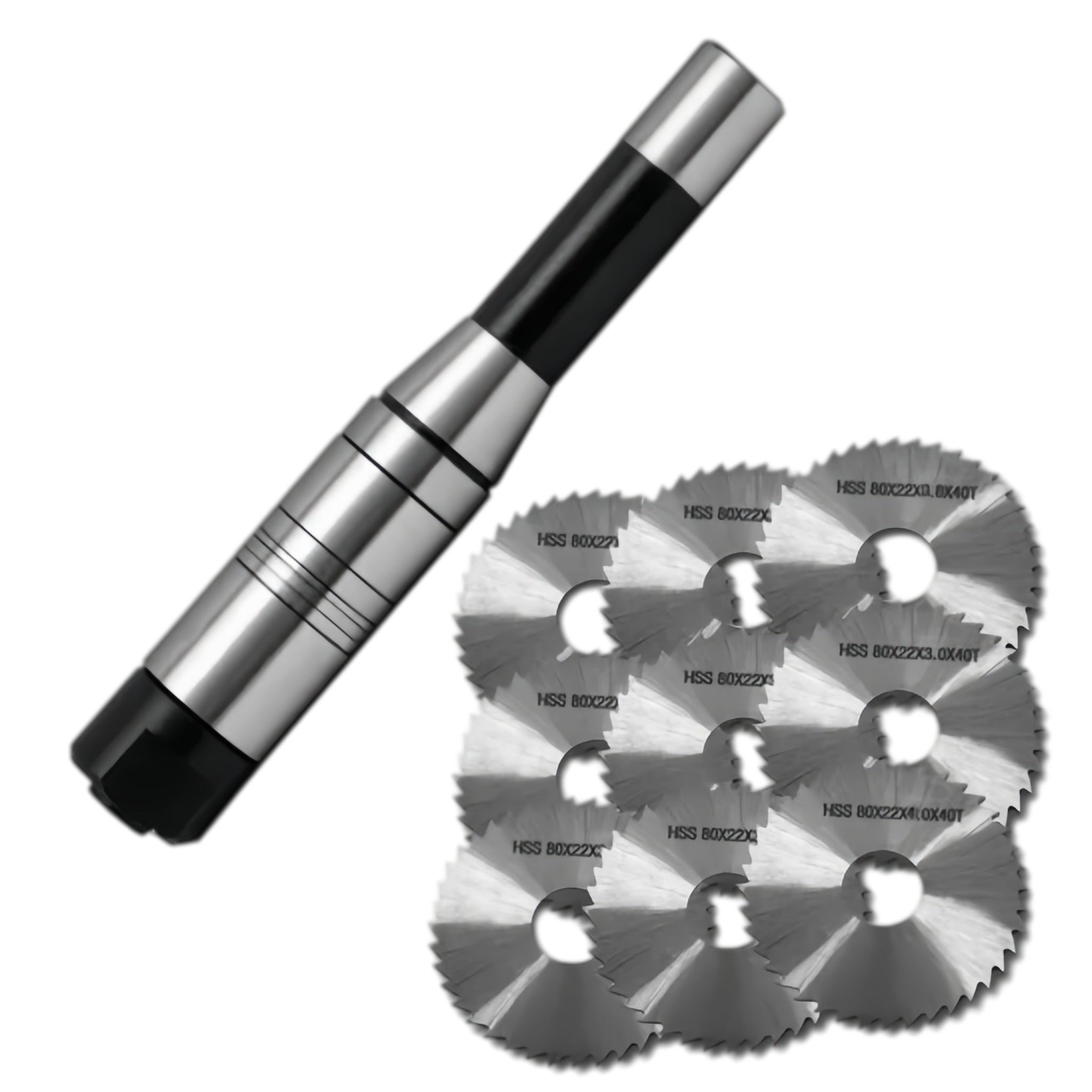

80mm Slitting Saw Full 9pcs Set with Stub Milling Arbor
80mm Slitting Saw Full 9pcs Set with Stub Milling Arbor
80mm Slitting Saw Full 9pcs Set with Stub Milling Arbor
Technical diagram of a metal spindle or arbor component with labeled parts including spacers, key, and Arbor Diameter and Arbor Length, shown on a white background.
80mm Slitting Saw Full 9pcs Set with Stub Milling Arbor
80mm Slitting Saw Full 9pcs Set with Stub Milling Arbor
80mm Slitting Saw Full 9pcs Set with Stub Milling Arbor
Technical diagram of a metal spindle or arbor component with labeled parts including spacers, key, and Arbor Diameter and Arbor Length, shown on a white background.

80mm Slitting Saw Full 9pcs Set with Stub Milling Arbor

Price
$198.89
Shank Size:
MT2

Product variant with selected options does not exist!
In stock and ready for shipping

Product Informations:

A versatile slitting saw set designed for milling machines and suitable for a wide range of slotting, grooving, parting and precision cutting applications.

This complete set includes 9 × 80mm diameter slitting saws covering thicknesses from 0.5mm to 4.0mm, giving you a range of cutter widths for different machining requirements. All saws feature a 22mm bore and are supplied with a stub milling arbor with six spacers for secure and flexible setup.

Choose the arbor shank to suit your milling machine: MT2, MT3, R8 or 12mm Straight Shank.

Slitting Saw Specifications

Product Code Cutter Dia. Bore Width No. of Teeth
060-056-80010 80mm 22mm 0.5mm 32
060-056-80015 80mm 22mm 0.7mm 32
060-056-80020 80mm 22mm 0.8mm 32
060-056-80025 80mm 22mm 0.9mm 32
060-056-80030 80mm 22mm 1.0mm 32
060-056-80035 80mm 22mm 1.5mm 32
060-056-80040 80mm 22mm 2.0mm 32
060-056-80050 80mm 22mm 3.0mm 40
060-056-80060 80mm 22mm 4.0mm 32


Stub Milling Arbor Specifications:

MT2/22mm MT3/22mm R8/22mm Straight Shank
Shank Size MT2 MT3 R8 12mm
Drawbar Thread M10 M12 7/16"UNF -
Arbor Dia. 22mm 22mm 22mm 22mm
Arbor Length 65mm 74mm 65mm 65mm
Overall Length 171mm 206mm 205mm 205mm
Removable Key Yes Yes Yes Yes
Number of Spacer 6 6 6 6


View the Full Range of Stub Milling Arbors & Slitting Saws
