SIEG XN2 HiTorque Heavy Duty Mill Drill

Introducing the new XN2 HiTorque Heavy Duty Mill Drill, designed for industrial and serious home workshop use. This benchtop mill drill boasts high rigidity and a heavier table load, thanks to its unique column design. To stand out from the crowd, the XN2 features Y-axis movement on the column, resulting in improved rigidity and enhanced table load capacity. Equipped with SIEG's in-house programmed HiTorque brushless motor with a torque controller system, the XN2 also includes a tapping function, setting a new standard for performance, versatility, and durability.

Specifications:
Drilling Capacity: 18mm
End Mill Capacity: 18mm
Face Mill Capacity: 50mm
Tapping Capacity: M8
Throat: 180mm

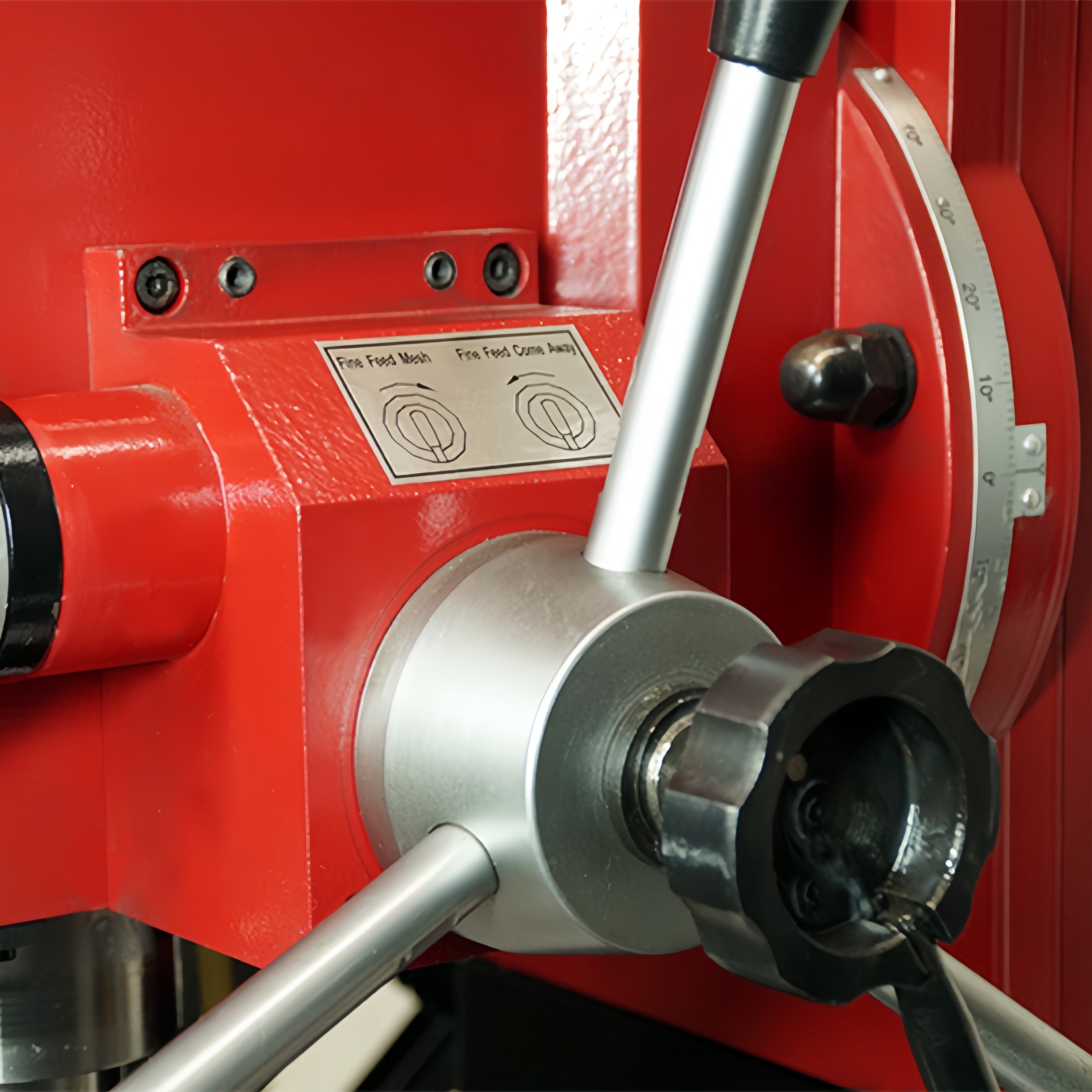

Spindle Stroke: 50mm
Table Travel: 230 x 150mm ( X, Y )

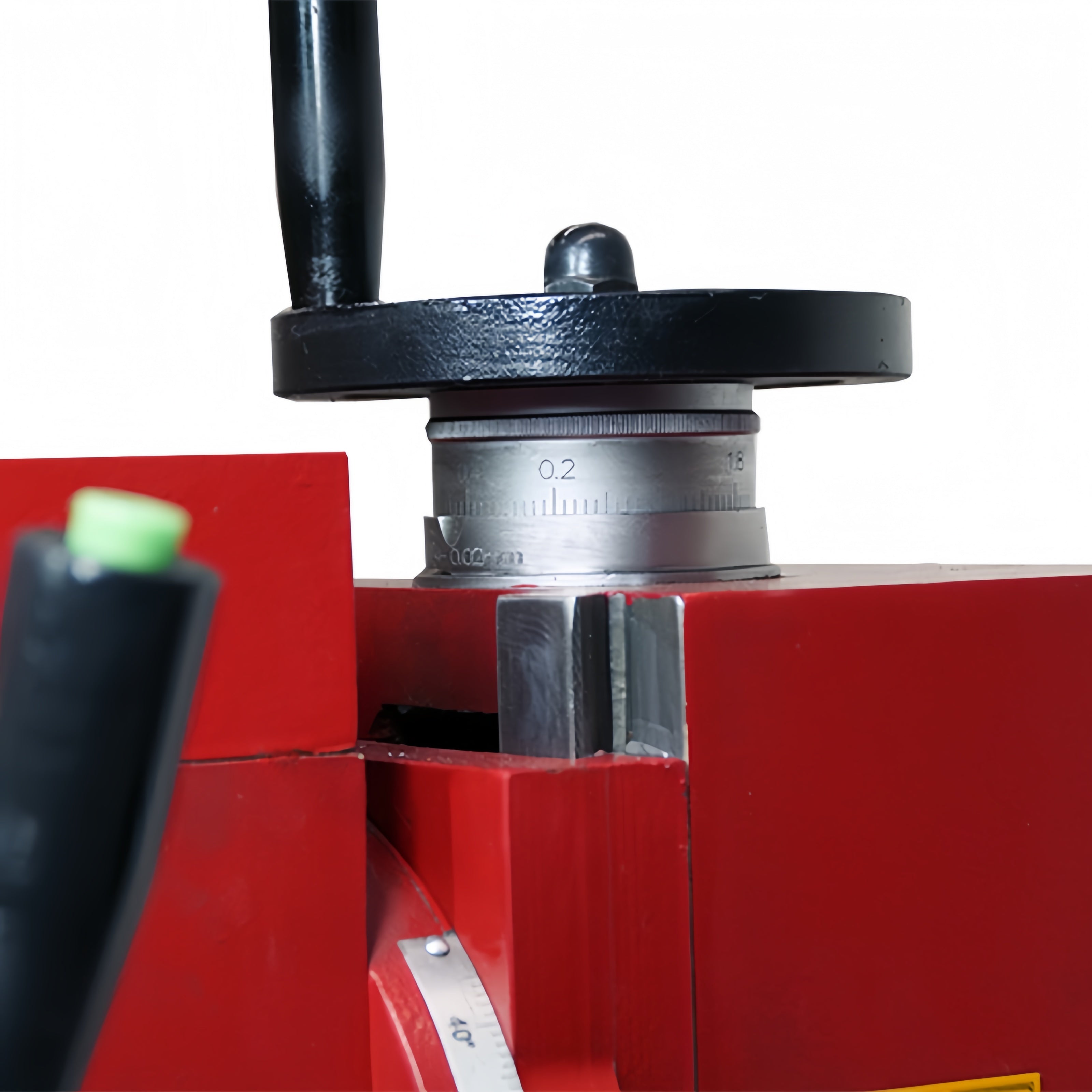

Head Travel: 220mm
Head Tilting:  LR ±45°
Spindle Taper:  R8
Max. Spindle to Table: 300mm
Effective Table Size: 500x130mm
T-Slot Size: 8mm ( please use M6 Clamps )
Power Rating: 610W
Output: 500W
Spindle Speed Range: 50-2500rpm
Overall Dimension: 720x650x870mm
Weight（ Net/Gross ): 127 / 140kg

Standard Accessories:

• 13mm Drill Chuck
• Draw Bar (7/16 UNF)
• Collet Holder
• Wrench Set
• Oil Can
