SKU: 080-020-29000
Price
$2,475.00
Spindle Taper:
MT3
Options:
Machine Only
In stock and ready for shipping

Product Informations:


Features:

  • Brushless Motor with Torque Control
  • Tapping Mode
  • Variable Speed
  • Extra Long 700x160mm Worktable
  • Digital Spindle Speed Readout
  • Digital Drilling Depth Readout
  • Forward / Reverse
  • Extra Rigid Column
  • Solid Cast Iron Base
  • Belt Drive for Quieter Operation
  • Fine Feed
  • Switched Chuck Guard

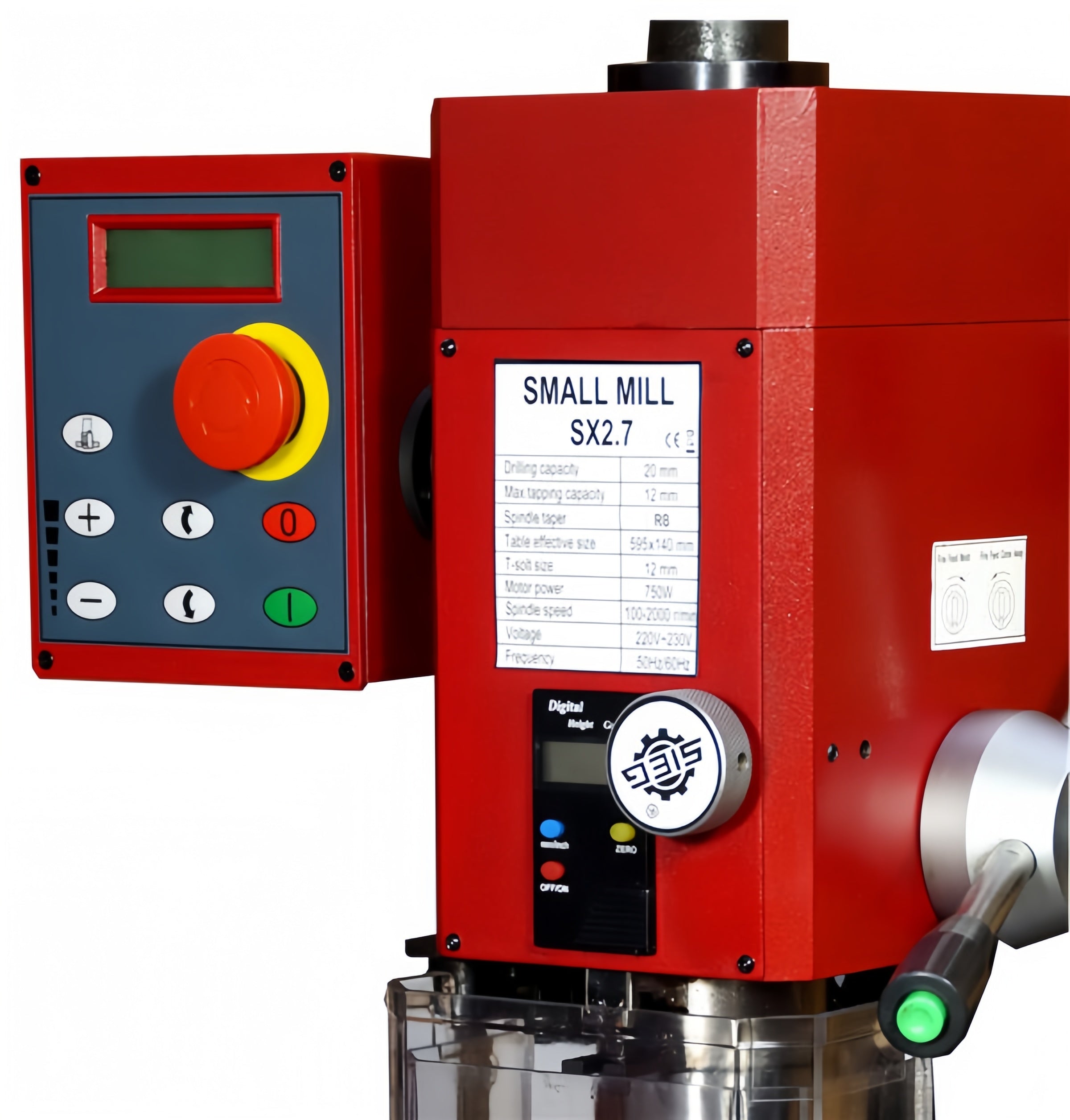

  • Advanced Control Panel


Specifications:

Drilling Capacity

20mm

End Mill Capacity

16mm

Face Mill Capacity

50mm

Max.Tapping Capacity

12mm

Table Cross Travel

190mm

Table Longitudinal Travel

500mm

Head Travel

290mm

Spindle Stroke

70mm

Spindle Taper

MT3 or R8

Throat

205mm

Max. Spindle to Table

345mm

Table Size

700x160mm

T-Slot Size

12mm (M10 T-Nuts)

Power Rating

1000W

Output

750W Brushless Motor

Spindle Speed

 100-2000rpm

Overall Dimension

860x620x880mm

Weight (Net/Gross)

101/135kg



Standard Accessories:
Drill Chuck & Arbor
Drawbar
Wrench Set
Oil Can

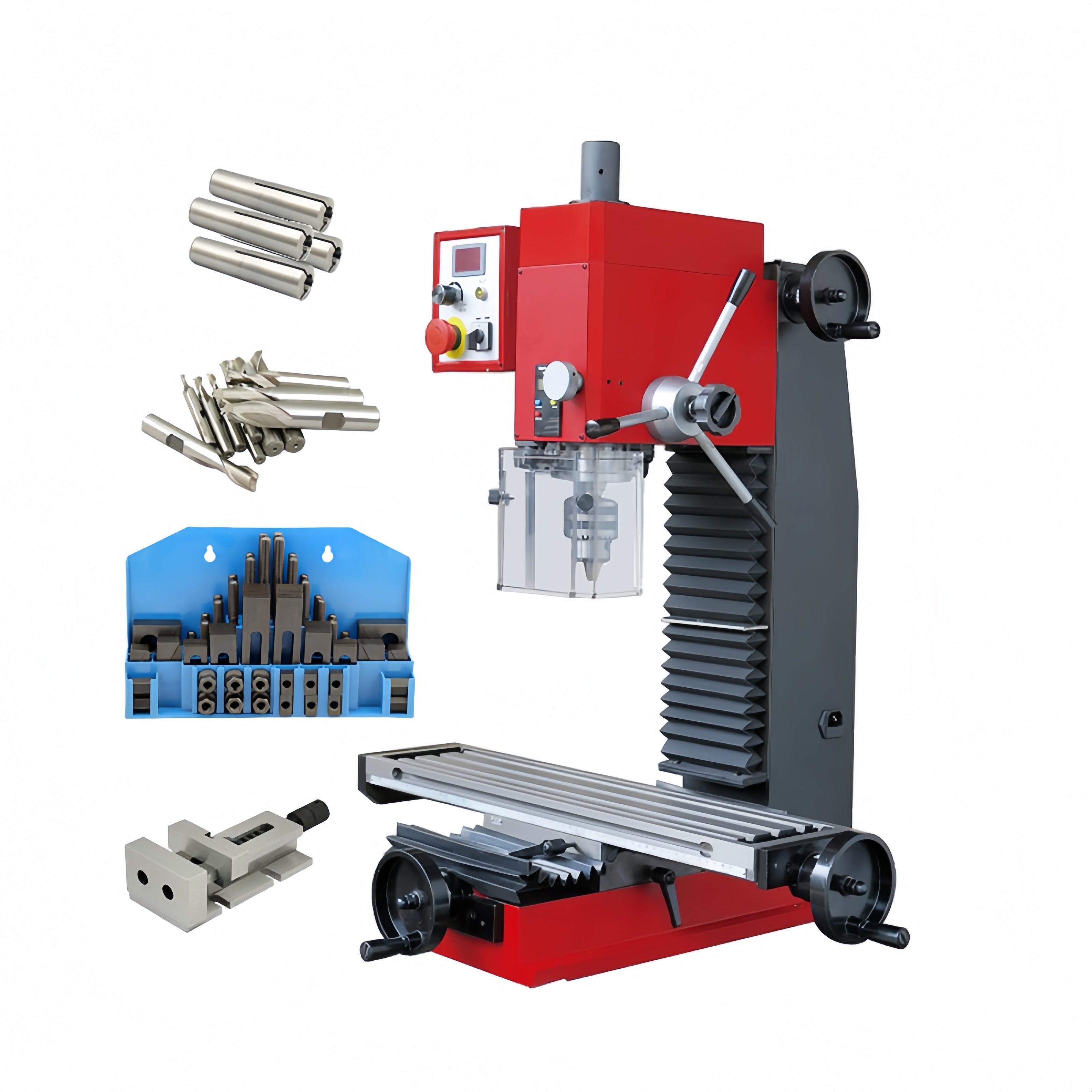

Starter Kits Includes(Optional):

  • M10 58pcs Clamping Kit
  • Type B Precision Vice 80mm
  • 6,10,12,16mm MT3/R8 Collets 4pcs Set
  • HSS 2-12mm Milling Cutter 11pcs Set

1 Year Extended Warranty Now Available! Click to learn more.
