SIEG PREMIUM SC20 / 180x400mm Hi-Torque Lathe

SKU:
Price
$1,958.00
Option:
SC20 Machine Only
In stock and ready for shipping

Product Informations:

Features:

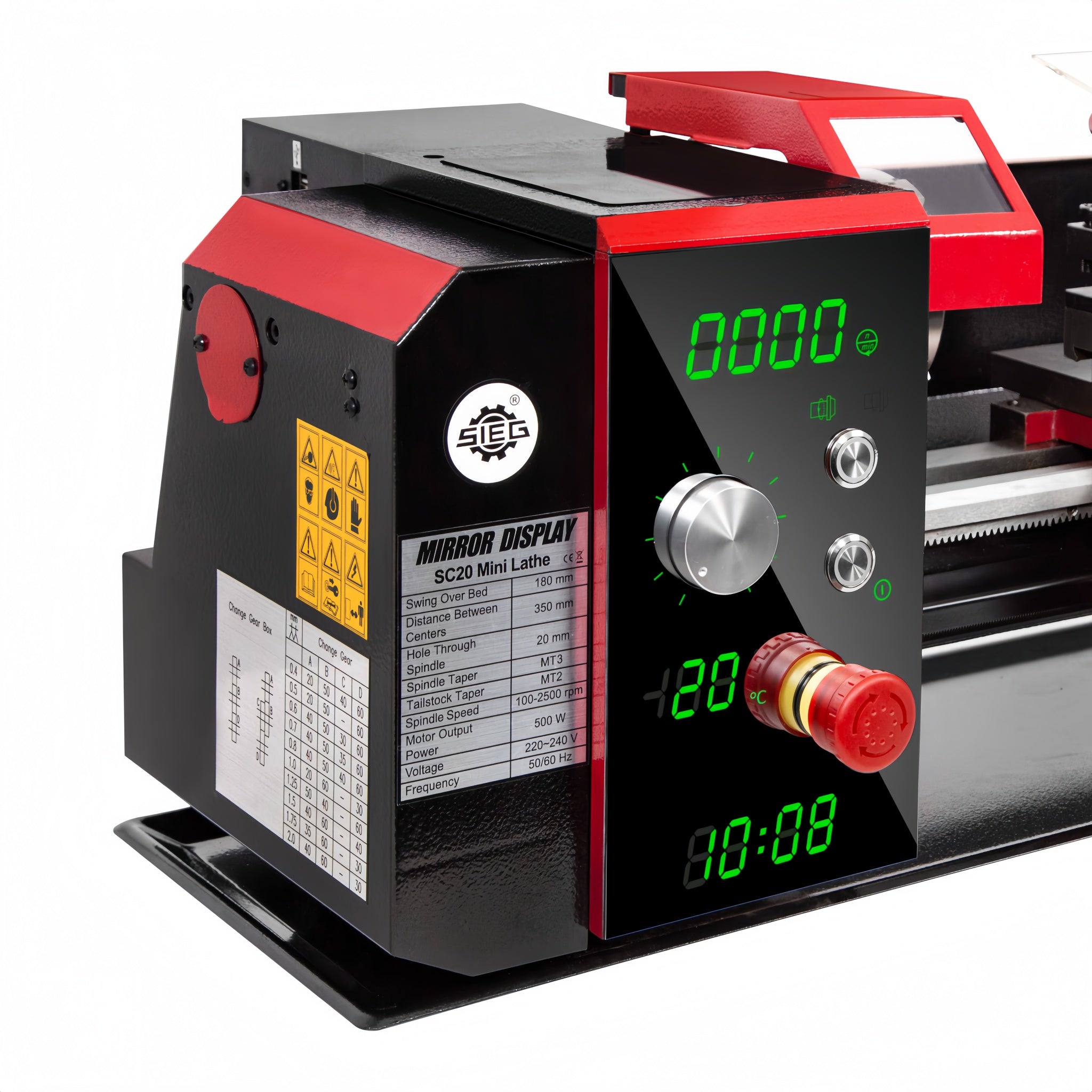

Luxurious mirror panel featuring a digital clock and thermometer, providing you with both convenience and sophistication..
Angular contact spindle bearing for optimal stability and precision.
Digital spindle speed display.

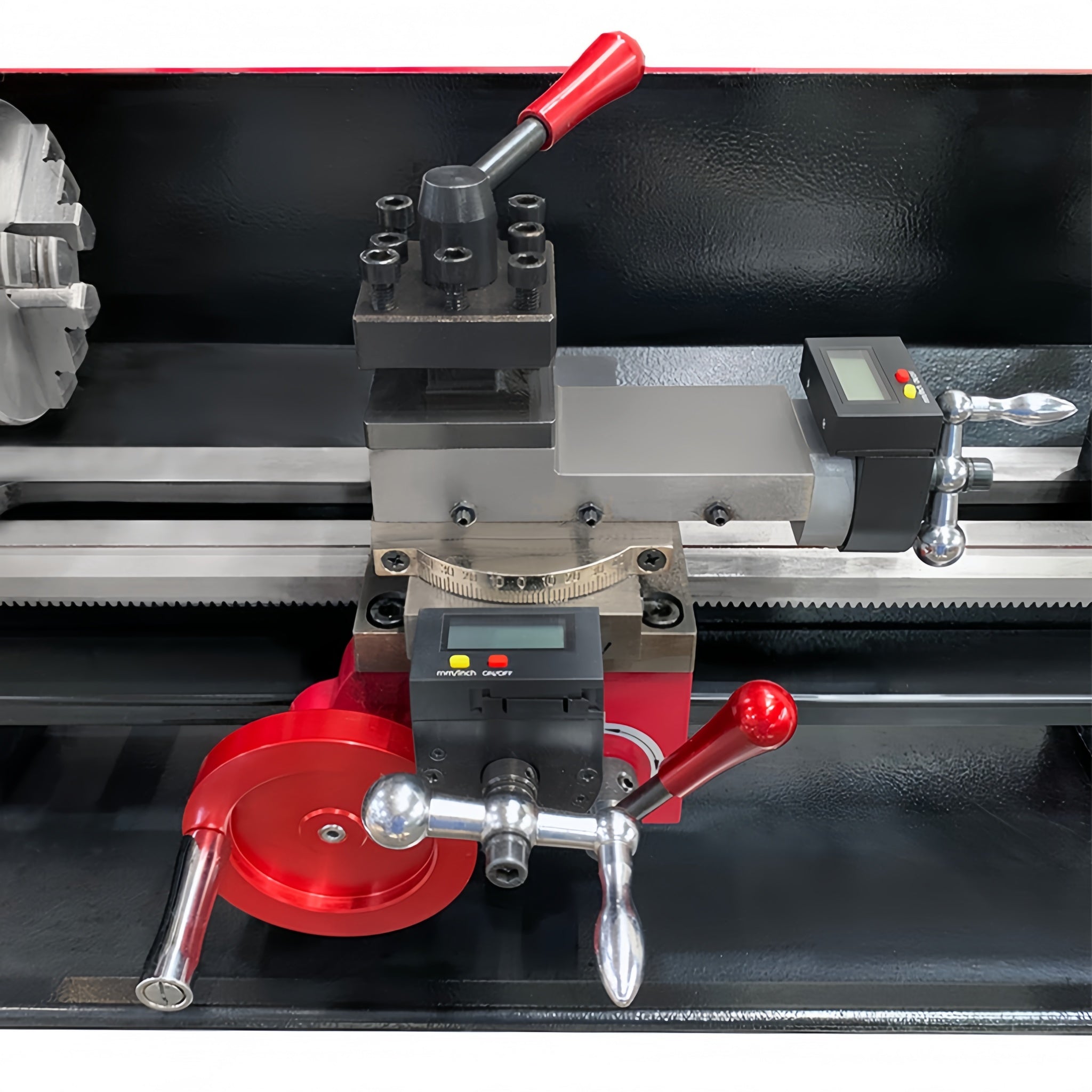

2-axis DRO on cross slide and compound slide, DRO for tailstock.

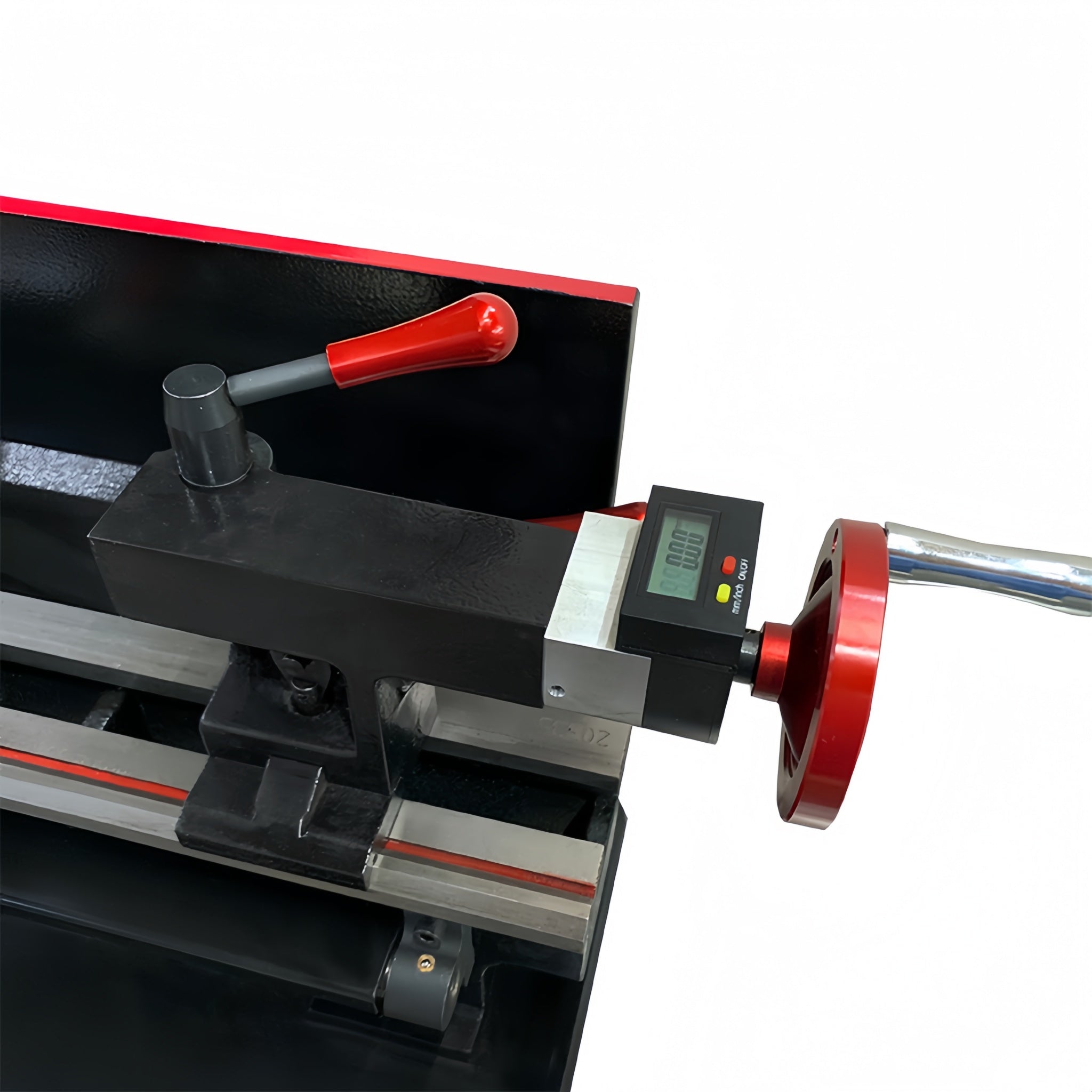

Camlock Tailstock

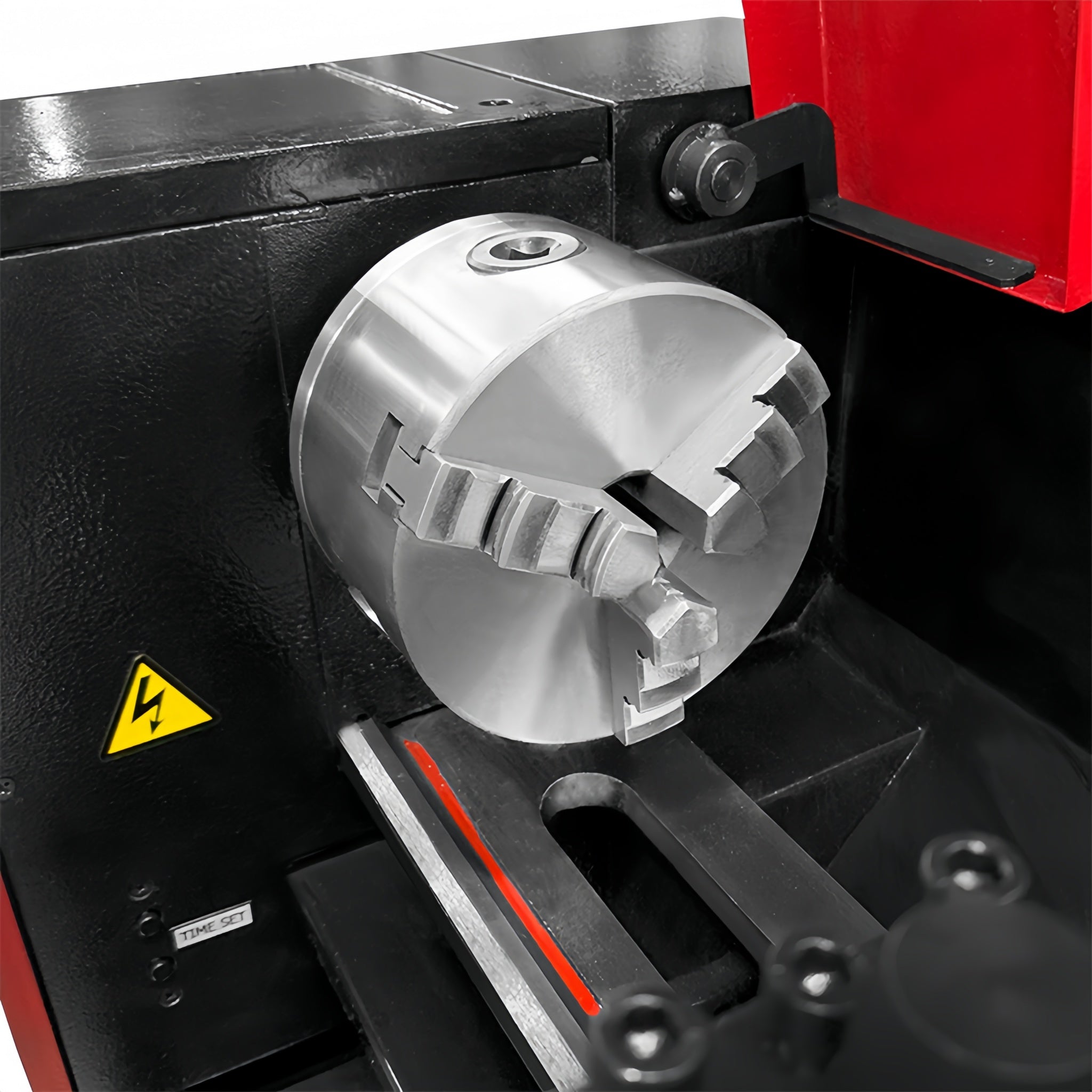

Precision 100mm 3-jaw Chuck

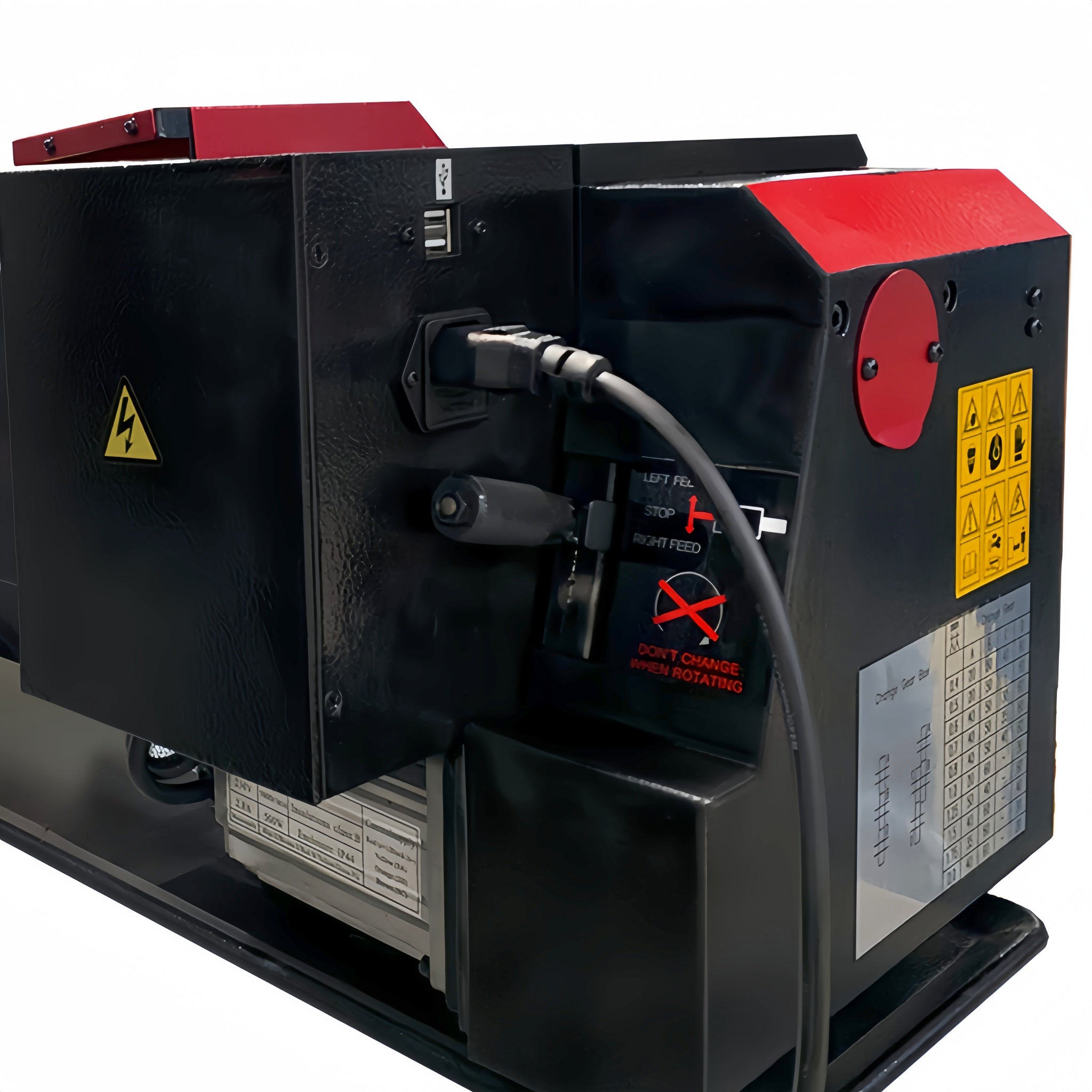

USB power supply x 2
High torque brushless motor for exceptional power and efficiency, built to handle even the toughest turning projects.


Specification:
Swing Over Bed: 180mm
Distance Between Centres: 400mm
Spindle Bore: 20mm
Spindle Taper: MT3
Tailstock Taper: MT2
Cross Slide Travel: 65mm
Compound Slide Travel: 55mm
Power Rating: 610W
Output: 500W DC

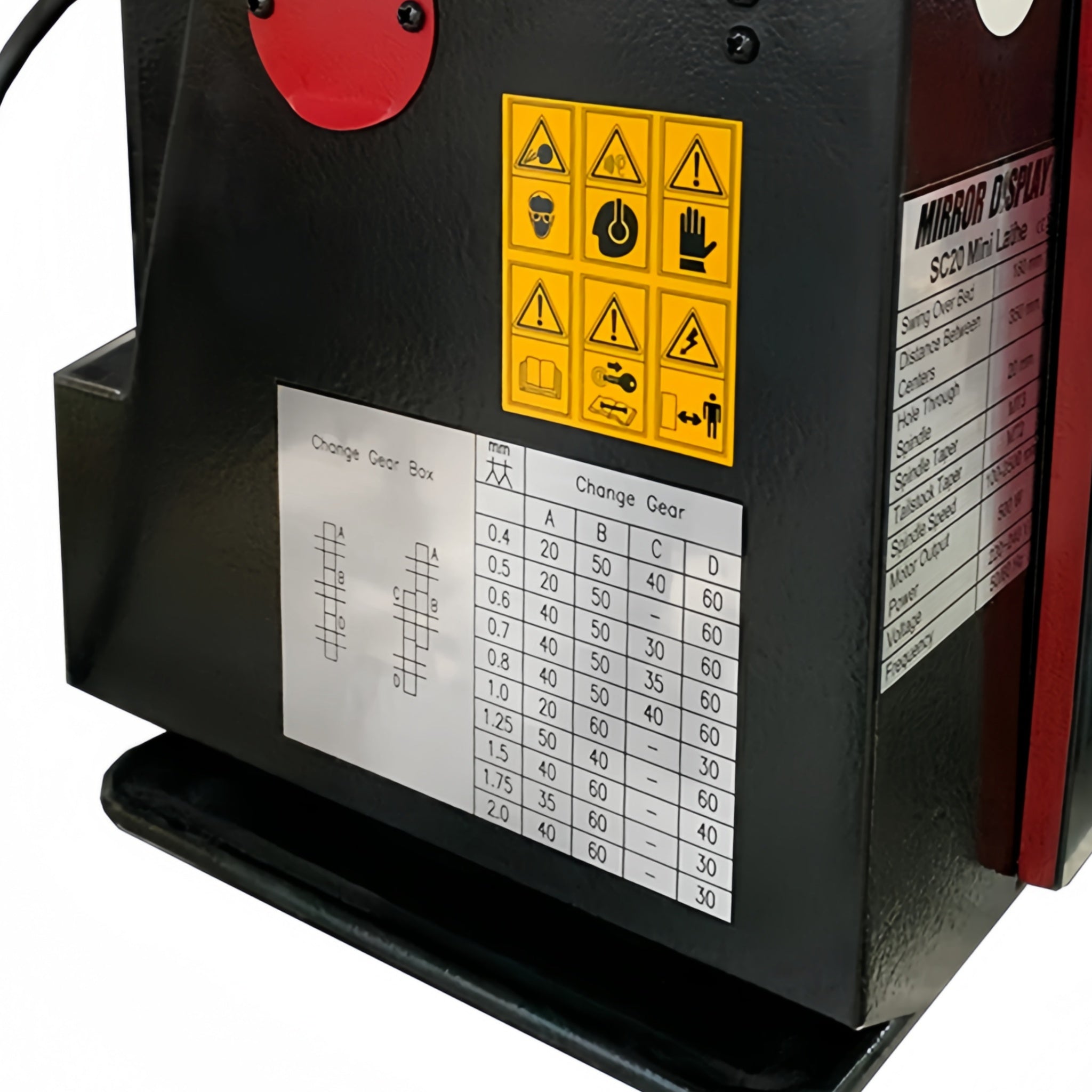

Metric Range of Threads: 0.4-2.0mm ( 10 Thread Pitches )
Spindle Speed: 100-2500rpm
Overall Dimension: 900x420x390mm
Weight ( Net / Gross ): 50 / 55kg

Standard Accessories:
80mm 3-Jaw Self-Centering Chuck
MT2 Dead Centre
Metric Change Gear Set
Oil Tray
Wrench Set

Starter Kit Includes (Optional):

  • 8x8mm Carbide Tipped 11pcs Lathe Tool Set
  • 8mm Parting Off Tool
  • Key type Drill Chuck, B16 1-13mm
  • MT2/B16 Drill Chuck Arbor
  • HSS Drill Bit 1-10mm set 19pcs, 0.5mm inc. (Split Head from 3mm up)
  • HSS Centre Drill Set 4pcs Set 1.6-4mm
  • MT2 Revolving Centre
      SIEG Lathe Comparison
Specs. C0 C2 C3&C3P SC3/SC20 SC4 C6 SC6 SC10
Swing Over Bed 110mm 180mm 210mm 250mm 305mm
Distance Between
Centres
125mm 300mm 350mm 400mm 510mm 550mm 700mm
Spindle Bore 10mm 20mm 38mm
Spindle Taper - MT3 MT5
Tailstock Taper - MT2 MT3
Cross Slide Travel 50mm 65mm 100mm 110mm 155mm
Compound Travel - 55mm 70mm 75mm 80mm
Tool Size (Height) 8mm 10mm 12mm 16mm
Power Rating 210W 400W 550W 650W
Brushless
1250W
Brushless
1000W 1250W
Brushless
1810W
Brushless
Output 150W 250W 350W 500W 1000W 550W 1000W 1500W
Range of Thread
(Metric)
- 0.4-2.0mm
(10 Pitches)
0.25-3.0mm
(17 Pitches)
0.4-3.0mm
(12 Pitches)
0.25-2.5mm
(14 Pitches)
Range of Thread
(Imperial)
- - - - 8-24TPI
(10 Pitches)
10-44TPI
(8 Pitches)
12-96TPI
(9 Pitches)
Weight 14kg 40kg 44kg 50kg 135kg 145kg 215kg
