SIEG C7 Gear Head Bench Lathe

SIEG’s next-generation gear-head variable speed lathe, designed for industrial-grade precision and inspired by gunsmithing lathes. The C7 is a significant upgrade from any bench lathe currently on the market, offering improved stability, power, and versatility.

Key features include a precision-ground and induction-hardened V-bed, an oil-bathed gearbox, a quick-change tool post, a cam-lock tailstock, powered longitudinal and cross feeds, and a large 26mm spindle bore.

Gunsmithing Features Include:
Spider Mount System features four stabilizing screws that support long shafting and rifle barrels through the outboard end of the spindle. Additionally, the reinforced tailstock ensures greater stability and accuracy for barrel work. The 750mm distance between centers accommodates long gun barrels.

Compared to its predecessor, the C6, this new C7 boasts a wider bed for improved rigidity and stability, with an additional 30kg in total weight. The new in-house SIEG lathe-specific DC variable speed motor delivers greater usable torque across the entire RPM range. Additionally, the oil-bathed gearbox supports both metric and imperial thread cutting.

Features:

• Induction Hardened, Wider V-Bed
• Variable Speed Lathe Specific DC Motor
• 26mm Large Spindle Bore

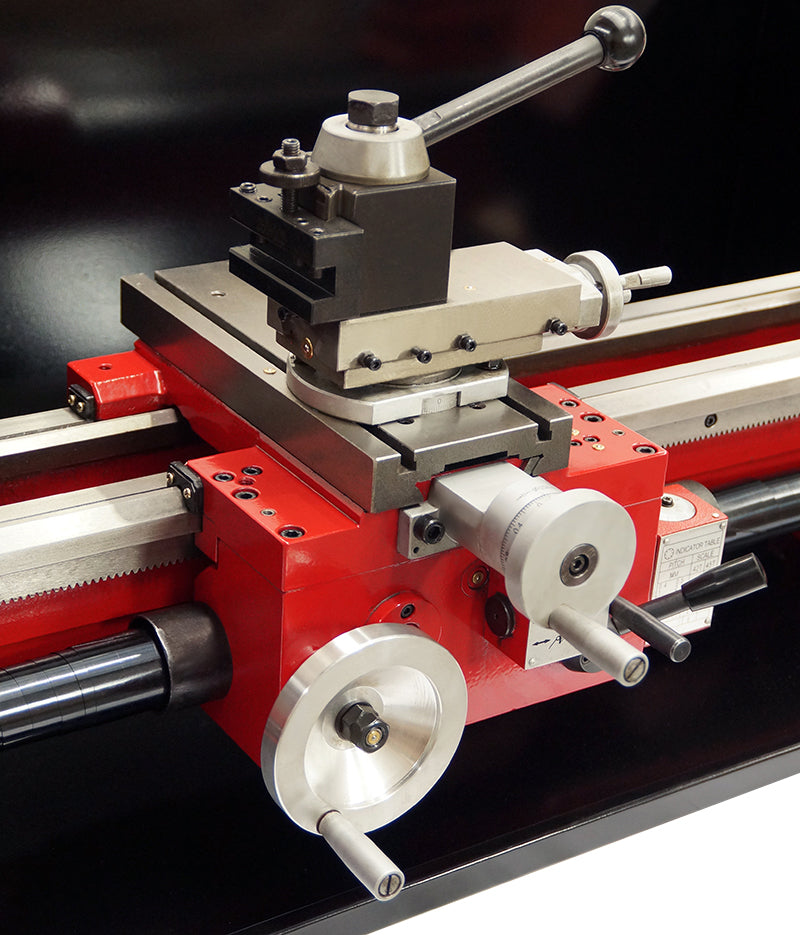

• Quick Change Tool Post with 4 Holders
• Longitudinal & Cross Powered Feed
• Spider Mount for Gun Barrels

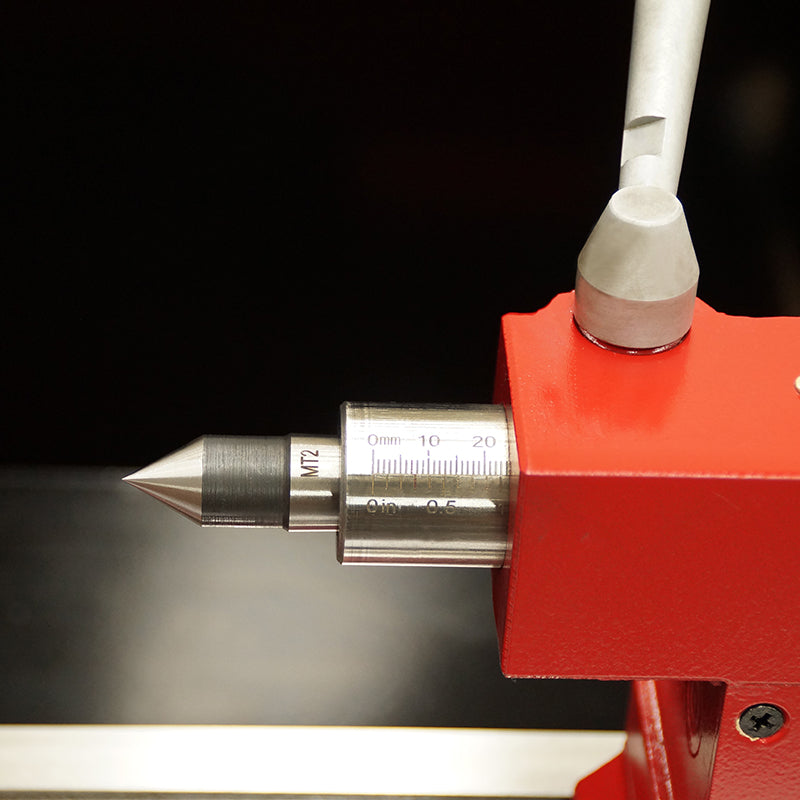

• Cam-lock Tailstock

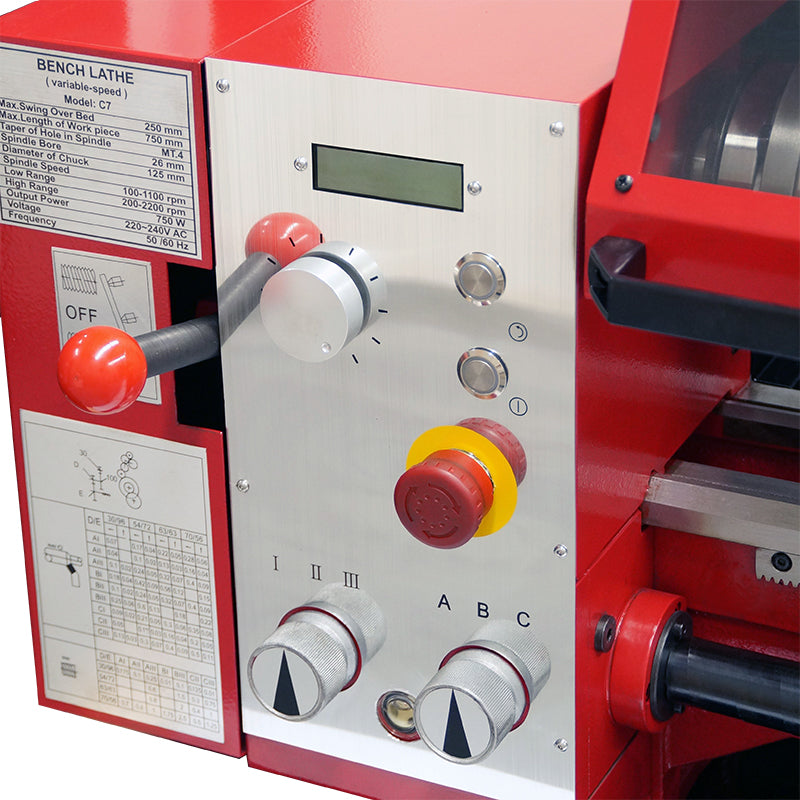

• Oil-Bathed Gear Box
• Cut Metric & Imperial Threads
• Metal Gear
• Switched Chuck Guard for Safety
• Lead-screw Guard

Specifications:
Swing Over Bed: 250mm
Distance Between Centres: 750mm
Spindle Bore: 26mm
Spindle Taper: MT4
Tailstock Taper: MT2
Swing Over Cross Slide: 142mm
Carriage Travel: 600mm
Cross Slide Travel: 115mm
Compound Travel: 70mm
Tailstock Quill Travel: 64mm
Bed Width: 135mm
Leadscrew Thread: M20 x 2.00mm
Longitudinal Feed: 0.09-0.46mm
Imperial Thread Range: 8-56TPI (27)
Metric Thread Range: 0.4-3.0mm (15)
Spindle Speed Low Range: 100-1100rpm
Spindle Speed High Range: 200-2200rpm
Motor Output: 750w DC
Overall Dimensions: 1350x630x410mm
Packing Size: 1400x690x650mm
Shipping Weight: 209kg

Standard Accessories:
125mm 3-Jaw Self-Centering Chuck
Chip Tray
Metal Change Gear Set
Tools for Maintenance
