SKU: 080-010-00000
Price
$599.50
In stock and ready for shipping

Product Informations:

Features:

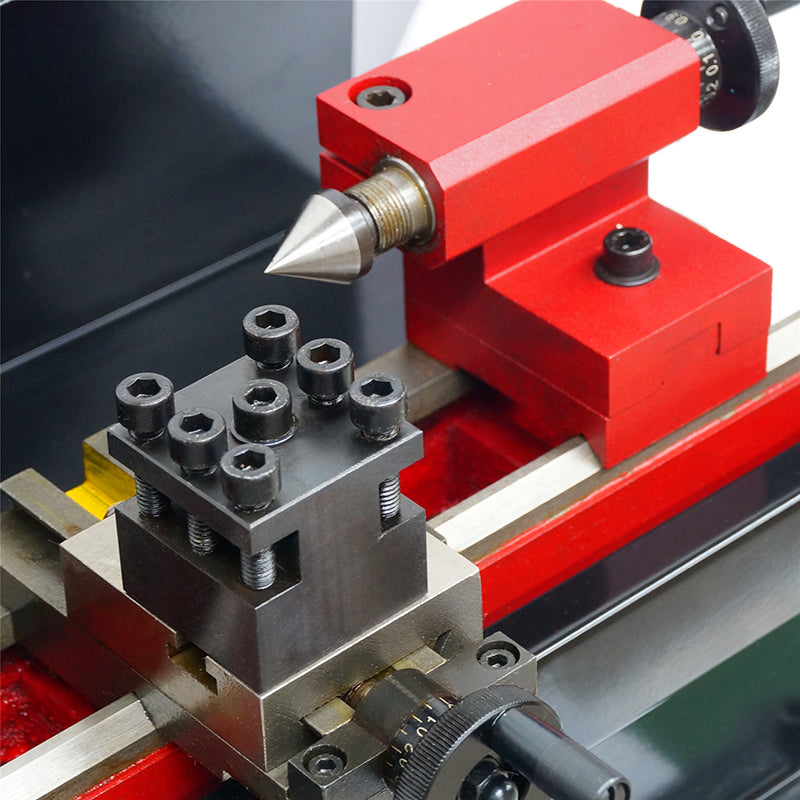

Adjustable Tailstock ( Exclusive to Ausee in Australia )
2-Way Tool Post
Overload Protection
Variable Speed
Chuck Guard with Safety Switch

Specifications:
Swing Over Bed: 110mm
Distance Between Centres: 125mm
Spindle Bore: 10mm
Tailstock Through Hole: 10mm
Tailstock Thread: M14x1mm
Cross Slide Travel: 50mm
Power Rating: 210W
Output: 150W
Spindle Speed: 100-3800rpm
Overall Dimension: 440x270x210mm
Weight ( Net / Gross ): 14 / 16kg

Standard Accessories:

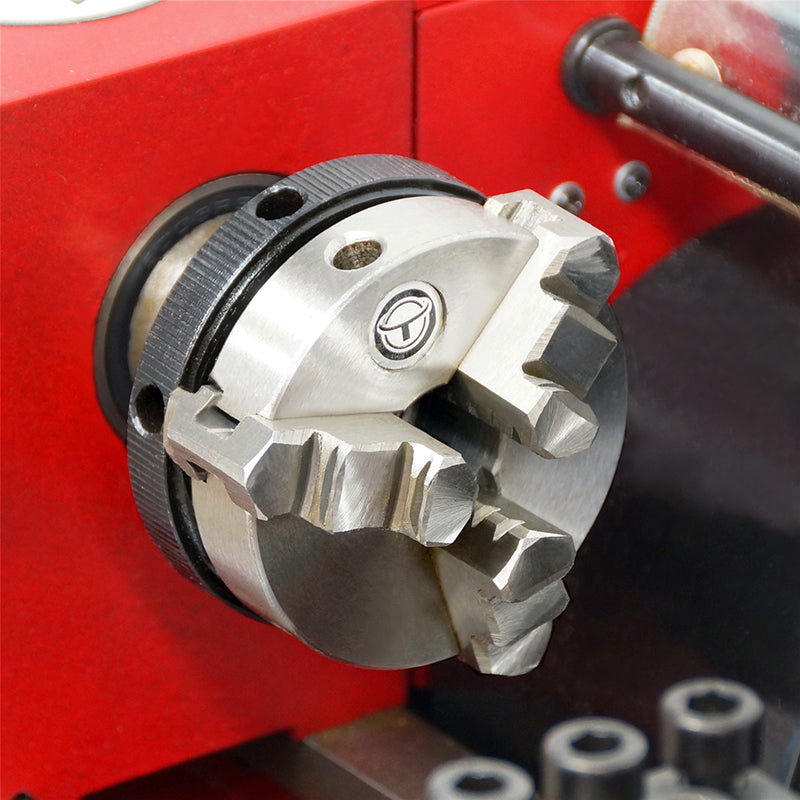

3-Jaw Self-Centring Chuck
Dead Centre
2-Way Tool Post
8x8mm Lathe Tool 5pcs Set
Adjustable Tailstock

1 Year Extended Warranty Now Available! Click to learn more.


      SIEG Lathe Comparison
Specs. C0 C2 C3&C3P SC3/SC20 SC4 C6 SC6 SC10
Swing Over Bed 110mm 180mm 210mm 250mm 305mm
Distance Between
Centres		 125mm 300mm 350mm 400mm 510mm 550mm 700mm
Spindle Bore 10mm 20mm 38mm
Spindle Taper - MT3 MT5
Tailstock Taper - MT2 MT3
Cross Slide Travel 50mm 65mm 100mm 110mm 155mm
Compound Travel - 55mm 70mm 75mm 80mm
Tool Size (Height) 8mm 10mm 12mm 16mm
Power Rating 210W 400W 550W 650W
Brushless 		1250W
Brushless 		1000W 1250W
Brushless 		1810W
Brushless
Output 150W 250W 350W 500W 1000W 550W 1000W 1500W
Range of Thread
(Metric)		 - 0.4-2.0mm
(10 Pitches)		 0.25-3.0mm
(17 Pitches)		 0.4-3.0mm
(12 Pitches)		 0.25-2.5mm
(14 Pitches)
Range of Thread
(Imperial)		 - - - - 8-24TPI
(10 Pitches)		 10-44TPI
(8 Pitches)		 12-96TPI
(9 Pitches)
Weight 14kg 40kg 44kg 50kg 135kg 145kg 215kg
