Model 200 Piston Type Quick Change Tool Post Set

Model 200 Piston Type Quick Change Tool Post Set

This Model 200 Quick Change Tool Post Set:

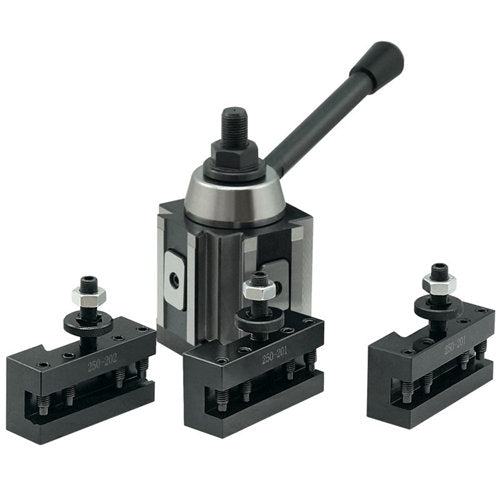

Essential set is supplied complete with:
1 x Model 200 Wedge Type Tool Post
2 x Model 200 Standard Tool Holder
1 x Model 200 Tool Holder with V- Groove

Delux set is supplied complete with:
1 x Model 200 Wedge Type Tool Post
2 x Model 200 Standard Tool Holder
1 x Model 200 Tool Holder with V- Groove
1 x Model 200 Boring Tool Holder
1 x Model 200 Parting Tool Holder - Angled
1 x Model 200 Knurling Tool Holder

The Model 200 quick change tool post system is for lathes with 250-380mm /10-15" swing.

The tool post and tool holders are of hardened steel construction for excellent rigidity and the mating faces are ground for better repeatability when changing tools.

Specifications for the Tool Post:

A: 3"
B: 4.5/8"
C: 2.3/4"mm
D: ø16mm Dia., M16x1.5mm Thread

Specifications for the Standard Tool Holder:

This tool holder is designed to hold square tools up to 16mm.
A: 44.5mm
B: 16.5mm
C: 12.5mm
D: 28.5mm

Specifications for the V-Groove Tool Holder:

This tool holder is designed to hold square tools up to 16mm and round tools diameter up to 13mm.
A: 44.5mm
B: 16.5mm
C: 12.5mm
D: 28.5mm

Specifications for the Boring Tool Holder:

This boring tool holder is designed to hold ø19mm round tools using the split sleeve (included) and ø25mm without the sleeve.
A: 44.5mm
B: 22mm
C: ø19mm with sleeve, ø25mm without sleeve

Specifications for the Parting Tool Holder (Angled):

This parting tool holder will hold parting blade up to 3/16"x5/8".
A: 1.3/4"
B: 5/8"
C: 3/16"

Suitable Blades:
HSS Parting-off Blade 3/32"x5/8" x5"

Specifications for the Knurling Tool Holder:

A: 44.5mm
B: 16.25mm
C: 12.5mm
D: 13mm
E: 19mm
F: 68.5mm
