ER32 Lathe Collet Chuck

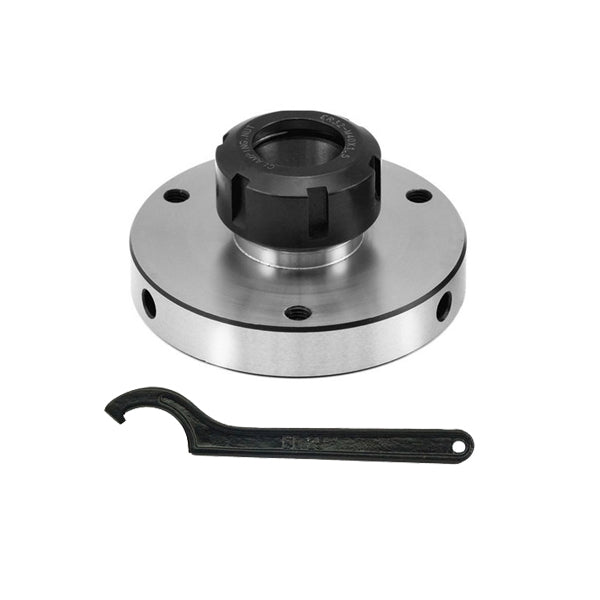

• ER32 Lathe Collet Chuck, 95mm Dia.

(C-spanner included, fit C2,C3,SC3 or similar lathe)
Diameter: 95mm
Collet Type: ER32
Bore: 24mm
Register: 55mm
PCD: 66mm
Fixing Holes: 3 x M6

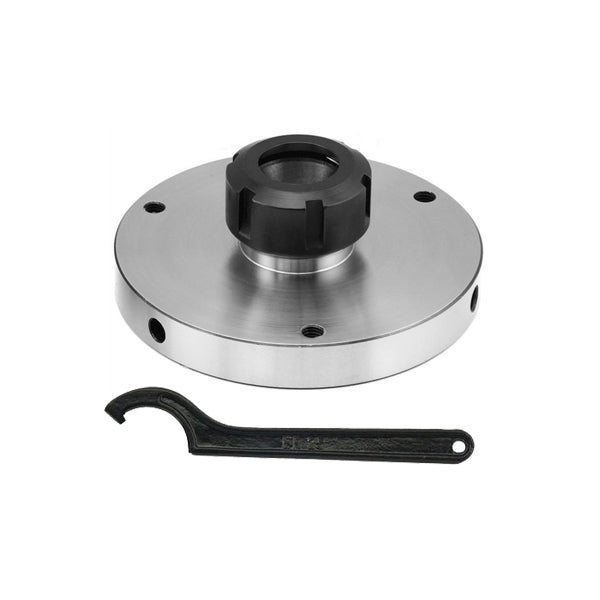

• ER32 Lathe Collet Chuck, 100mm Dia.

(C-spanner included, fit C4,SC4 or similar lathe)
Diameter: 100mm
Collet Type: ER32
Bore: 24mm
Register: 72mm
PCD: 84mm
Fixing Holes: 3 x M8

• ER32 Lathe Collet Chuck, 125mm Dia.

(C-spanner included, fit C6,SC6 or similar lathe)
Diameter: 125mm
Collet Type: ER32
Bore: 24mm
Register: 95mm
PCD: 107mm
Fixing Holes: 3 x M8

• ER32 Lathe Collet Chuck D1-4 Mount, 125mm Dia.

Diameter: 125mm
Collet Type: ER32
Bore: 32mm
Register: 63.513mm / 2.5005"
Mount: D1 - 4
Overall Height: 42mm
