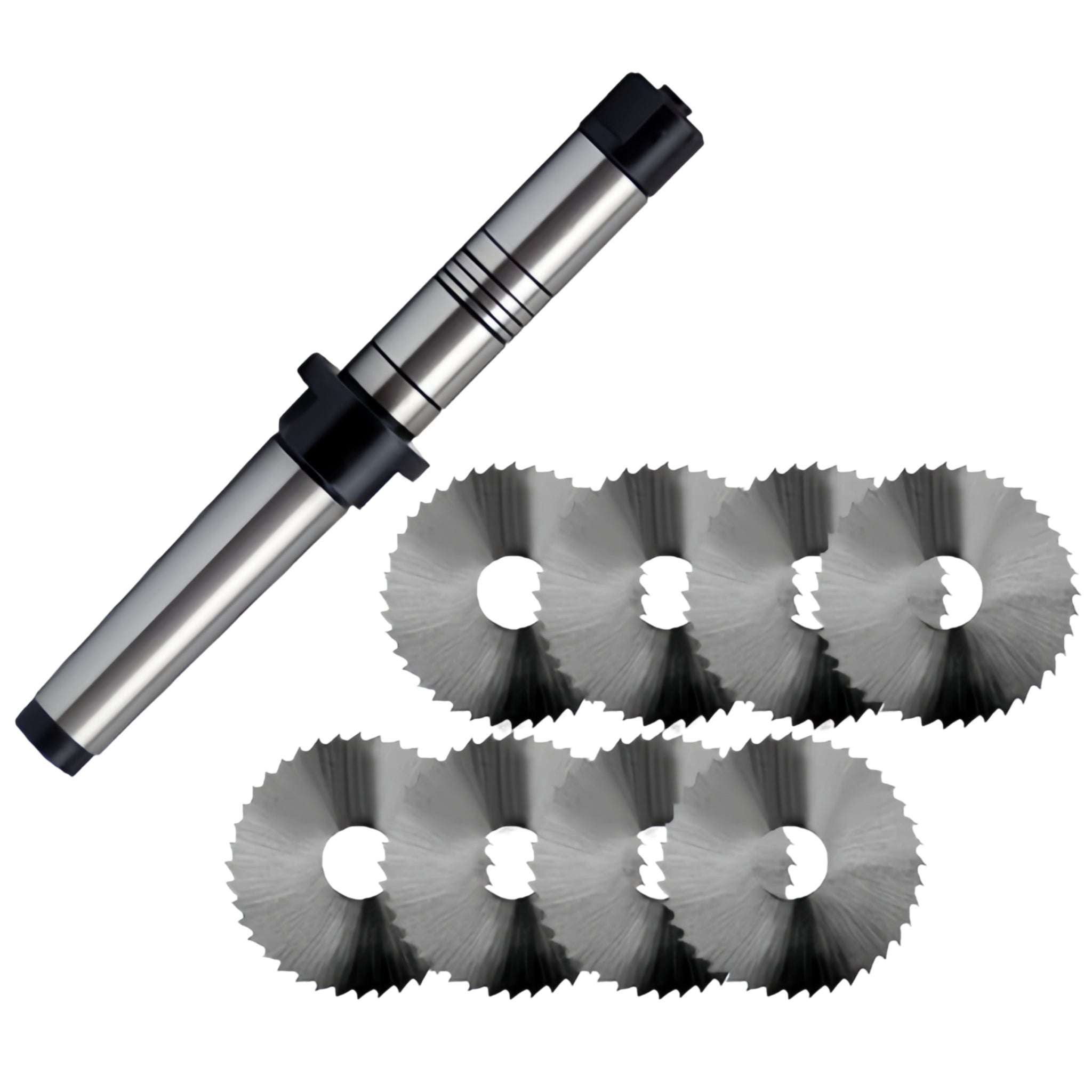

A set of slitting saws with a stub milling arbor. The saws are circular with teeth on the edge, and the arbor is long and cylindrical with black and silver colors.

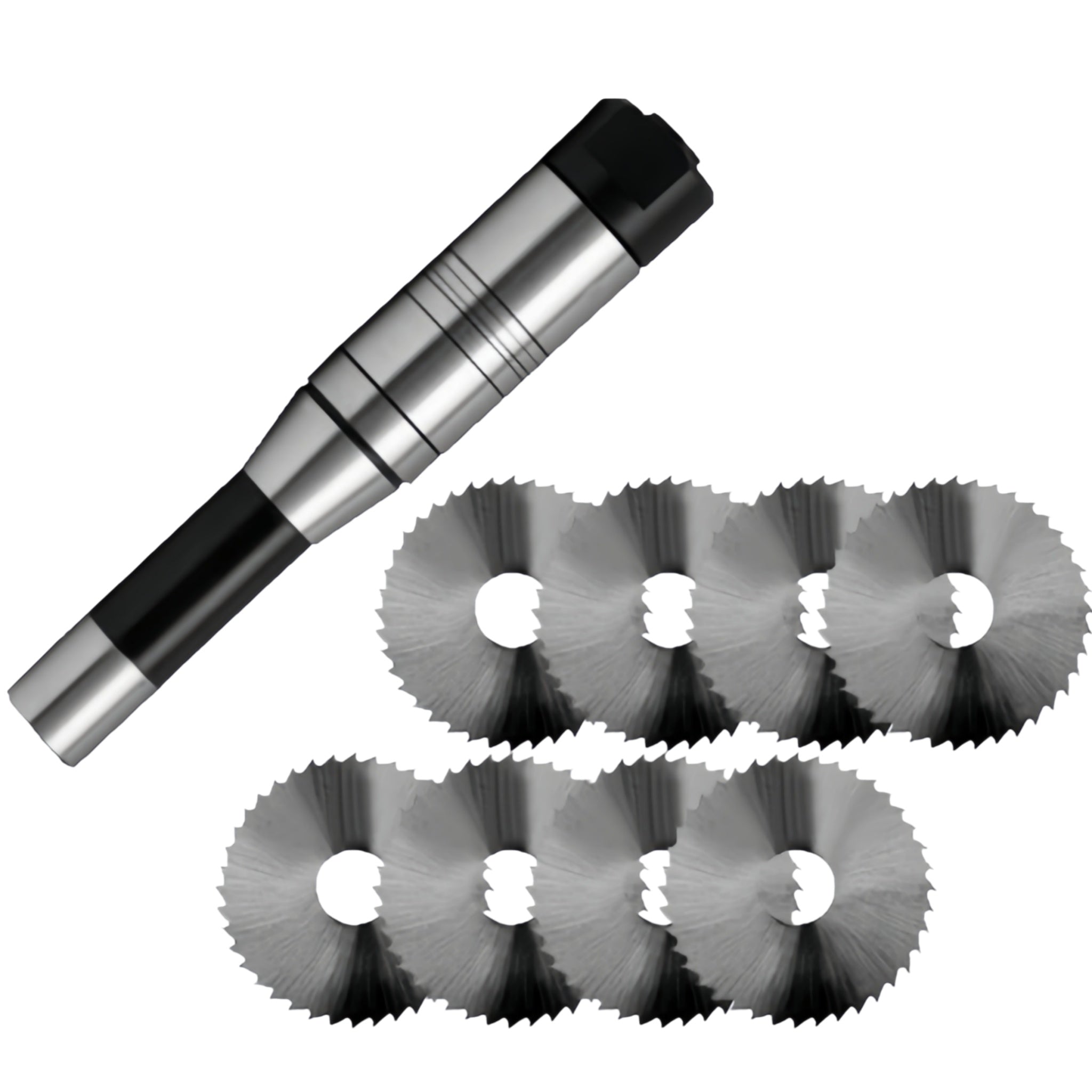

A metal cylindrical tool with black and silver sections shown alongside eight circular saw blades on a plain white background.
A metal stub milling arbor with a black hex nut head and silver shaft, shown alongside five circular cutting blades on a plain white background.
Technical diagram of a metal spindle or arbor component with labeled parts including spacers, key, and Arbor Diameter and Arbor Length, shown on a white background.
A set of slitting saws with a stub milling arbor. The saws are circular with teeth on the edge, and the arbor is long and cylindrical with black and silver colors.
A metal cylindrical tool with black and silver sections shown alongside eight circular saw blades on a plain white background.
A metal stub milling arbor with a black hex nut head and silver shaft, shown alongside five circular cutting blades on a plain white background.
Technical diagram of a metal spindle or arbor component with labeled parts including spacers, key, and Arbor Diameter and Arbor Length, shown on a white background.

50mm Slitting Saw Full 8pcs Set with Stub Milling Arbor

Price
$121.95
Shank Size:
MT2

Product variant with selected options does not exist!
In stock and ready for shipping

Product Informations:

A versatile slitting saw set designed for milling machines and suitable for a wide range of slotting, grooving, parting and precision cutting applications.

This complete set includes 8 × 50mm diameter slitting saws covering thicknesses from 0.5mm to 3.0mm, giving you a range of cutter widths for different machining requirements. All saws feature a 13mm bore and are supplied with a stub milling arbor with six spacers for secure and flexible setup.

Choose the arbor shank to suit your milling machine: MT2, MT3, R8 or 12mm Straight Shank.

Slitting Saw Specifications

Product Code Cutter Dia. Bore Width No. of Teeth
060-056-13010 50mm 13mm 0.5mm 40
060-056-13015 50mm 13mm 0.7mm 40
060-056-13020 50mm 13mm 0.8mm 40
060-056-13025 50mm 13mm 0.9mm 40
060-056-13030 50mm 13mm 1.0mm 40
060-056-13035 50mm 13mm 1.5mm 32
060-056-13040 50mm 13mm 2.0mm 32
060-056-13045 50mm 13mm 3.0mm 24


Stub Milling Arbor Specifications:

Shank Size MT2 MT3 R8 12mm
Drawbar Thread M10 M12 7/16"UNF -
Arbor Dia. 13mm 13mm 13mm 13mm
Arbor Length 64mm 64mm 65mm 65mm
Overall Length 163mm 196mm 200mm 205mm
Removable Key Yes Yes Yes Yes
Number of Spacer 6 6 6 6


View the Full Range of Stub Milling Arbors & Slitting Saws
