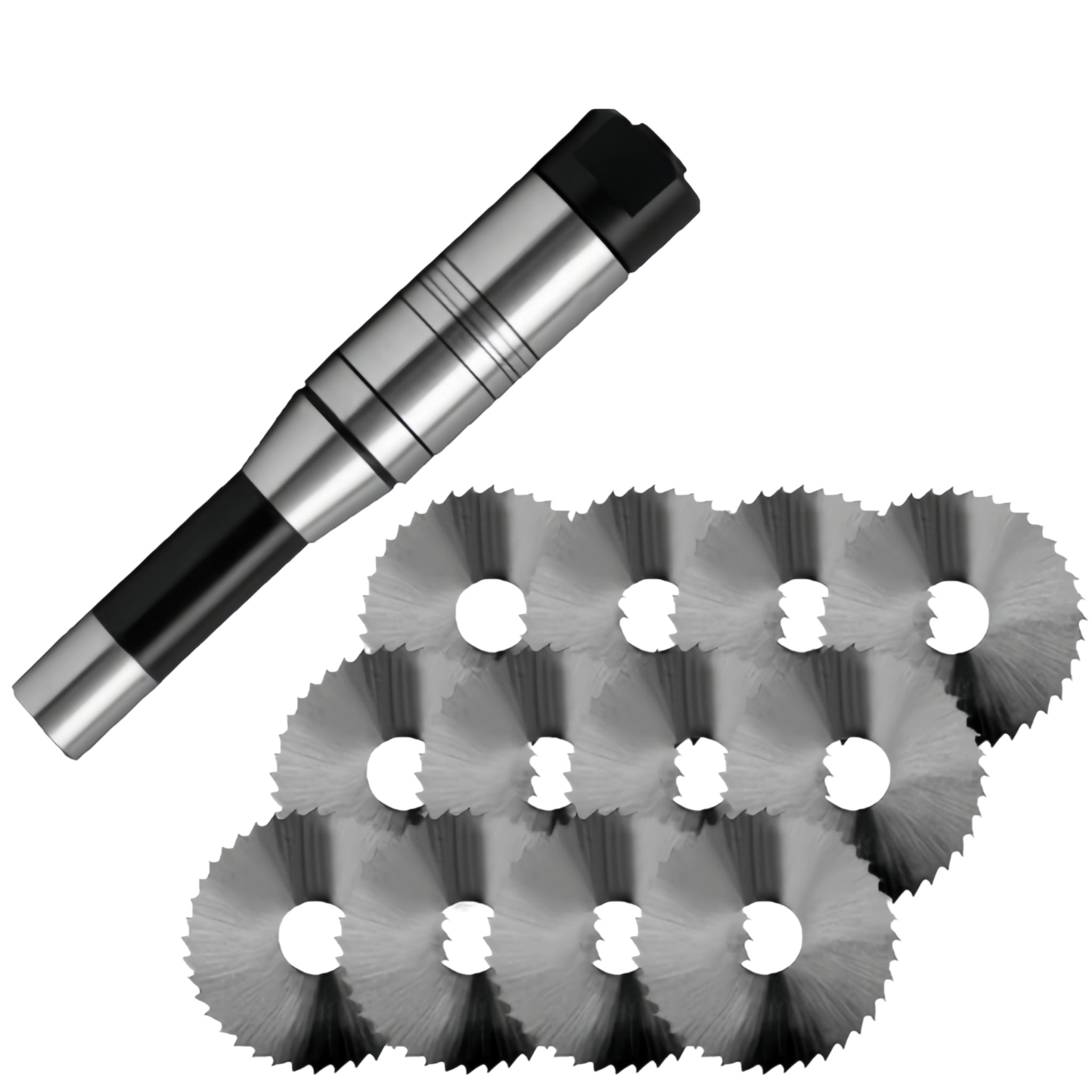

100mm Slitting Saw Full 12pcs Set with Stub Milling Arbor

Price: $359.59

Shank Size:

Product variant with selected options does not exist!

In stock and ready for shipping

Product Informations:

A versatile slitting saw set designed for milling machines and suitable for a wide range of slotting, grooving, parting and precision cutting applications.

This complete set includes 12 × 80mm diameter slitting saws covering thicknesses from 0.5mm to 5.0mm, giving you a range of cutter widths for different machining requirements. All saws feature a 22mm bore and are supplied with a stub milling arbor with six spacers for secure and flexible setup.

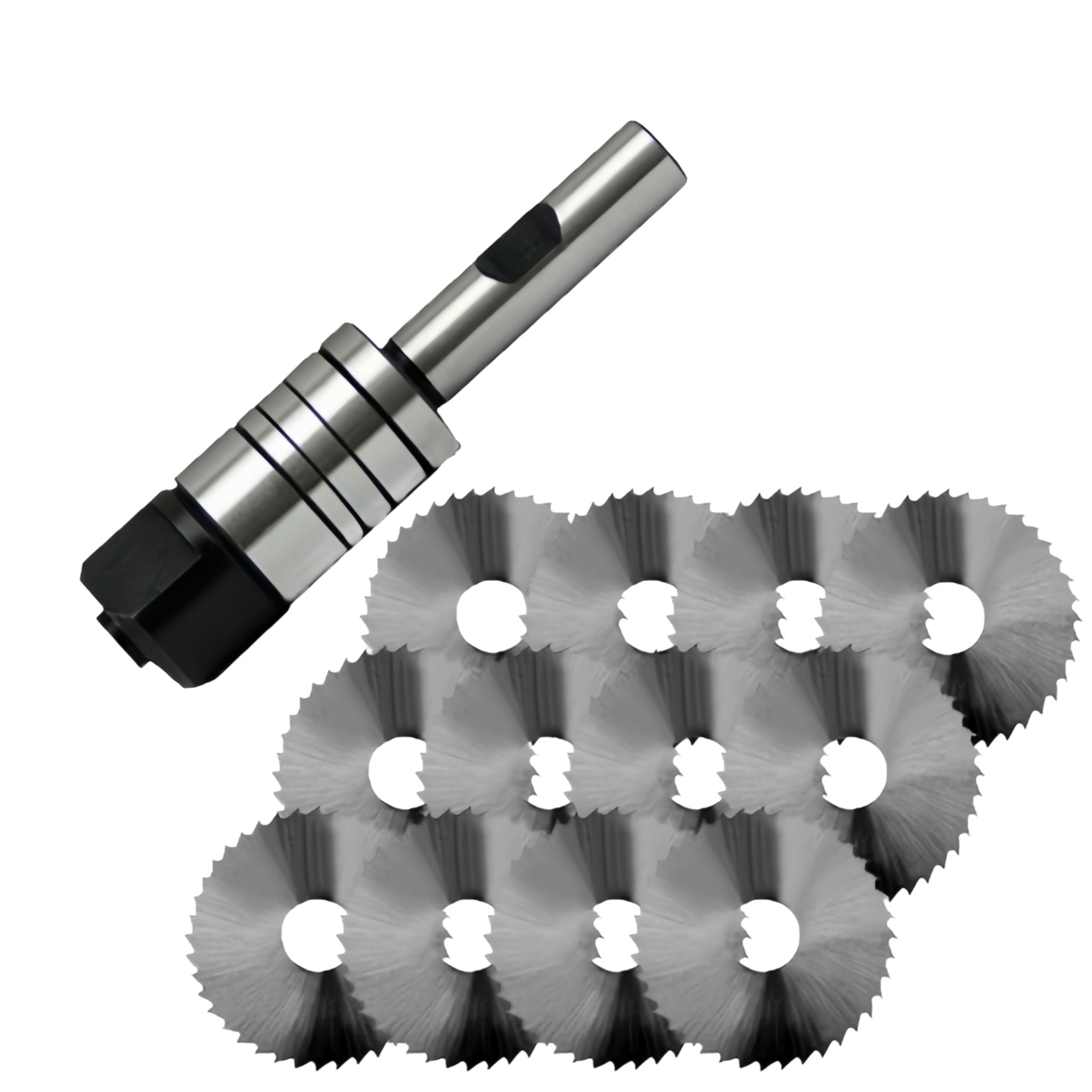

Choose the arbor shank to suit your milling machine: MT2, MT3, R8 or 12mm Straight Shank.

Slitting Saw Specifications

Product Code	Cutter Dia.	Bore	Width	No. of Teeth
060-056-10010	100mm	22mm	0.5mm	80T
060-056-10015	100mm	22mm	0.6mm	80T
060-056-10025	100mm	22mm	0.8mm	64T
060-056-10030	100mm	22mm	1.0mm	64T
060-056-10035	100mm	22mm	1.2mm	64T
060-056-10040	100mm	22mm	1.5mm	64T
060-056-10045	100mm	22mm	1.6mm	48T
060-056-10050	100mm	22mm	2.0mm	48T
060-056-10055	100mm	22mm	2.5mm	48T
060-056-10060	100mm	22mm	3.0mm	40T
060-056-10070	100mm	22mm	4.0mm	40T
060-056-10080	100mm	22mm	5.0mm	40T

Stub Milling Arbor Specifications:

Shank Size	MT2	MT3	R8	12mm
Drawbar Thread	M10	M12	7/16"UNF	-
Arbor Dia.	22mm	22mm	22mm	22mm
Arbor Length	65mm	74mm	65mm	65mm
Overall Length	171mm	206mm	205mm	205mm
Removable Key	Yes	Yes	Yes	Yes
Number of Spacer	6	6	6	6
